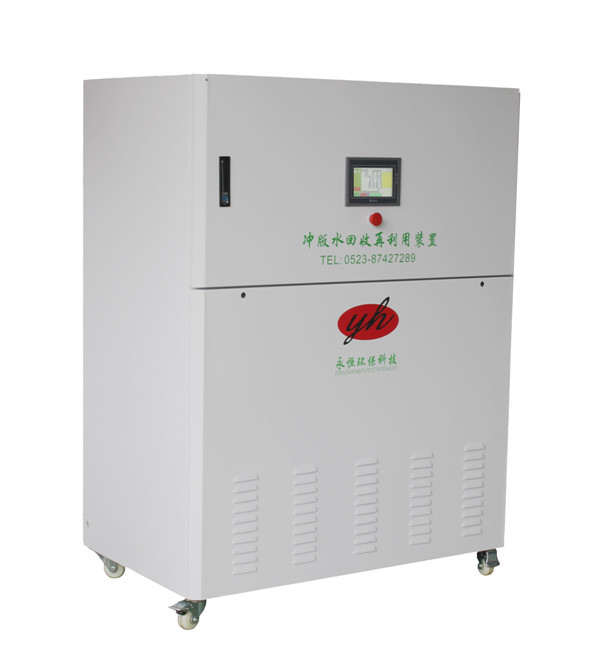

YH-CLEAN-02A沖版水回收再利用裝置
The Plate Water Circulation Reuse Device

》產品介紹：
沖版水循環再利用裝置，是專門處理顯影沖版廢水的環保設備。其獨特的顯影沖版廢水再利用循環系統可實現廢水的實時全自動處理，廢水經過水循環裝置、藥劑混合裝置、精密過濾芯的三級處理，配合水處理藥劑，PH中和藥劑的使用，達到可再次沖版的要求，實現廢水的的回收循環利用。沖版廢水經過有效過濾后，可以循環利用，回用率可達90%以上，處理過的水，達到工業用水排放標準，實現綠色印刷。

》性能特點：
·全電腦控制，自動清洗功能，低耗待機，節能高效。
·沖版機同步自動運行，多級過濾單元，保證沖版水的反復使用，明顯節約用水量。
·PH值檢測裝置及藥劑添加裝置的作用，保證了儲水池內PH值正常。
·專用藥劑對廢水進行軟化、中和處理，經過處理后的水可再次經水泵的作用，供顯影機循環使用。
·低廢液入口設計，適合所有品牌沖版機。
·兩次沉淀及精密過濾，三級處理系統，過濾精度達0.01微米，確保處理后水質的色度、濁度、肉眼可見物、PH值等各項指標達到工業排放標準。

》規格型號及參數（Model and  technical Specification）

Product Introduction:
The plate water circulation reuse device is an environmental protection equipment specially used for developing the printing plate waste water. The unique developing red version can realize wastewater by using waste water circulation system of real time automatic processing, wastewater through the water circulation device and reagent mixing device, precision filter with three stage treatment, water treatment chemicals, the use of PH neutralization agent, to seek again red version, realizing the recycling of waste water recycling the. After being effectively filtered, the plate wastewater can be recycled, the reuse rate can reach more than 90%, the treated water reaches the industrial water discharge standard, and the green printing can be realized.

Performance Characteristics:
·Full computer control, automatic cleaning function, low consumption, standby, energy saving and high efficiency.
·The plate punching machine runs synchronously and automatically, and the multi-stage filtering unit ensures the repeated use of the plate flushing water, thus obviously saving water consumption.
·The function of pH detection device and reagent adding device ensures normal pH value in the storage tank.
·The special agent can soften and neutralize the waste water, and the treated water can be reused by the developing machine once again through the action of the water pump.
·Low waste inlet design, suitable for all brands of stamping machine.
·Two precipitation and precision filtration, three stage treatment system, filtration accuracy of 0.01 microns, to ensure the quality of water treatment after the color, turbidity, visible, pH value and other indicators to meet the industrial emission standards.
