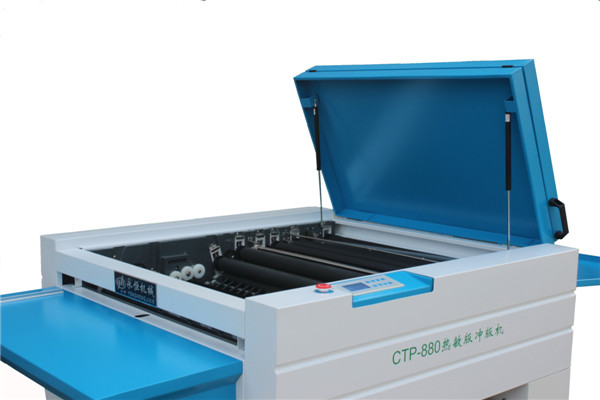

CTP沖版機顯影機

CTP熱敏版沖版機

Thermo-Sensitive CTP Plate Punching Machine

》產品介紹：

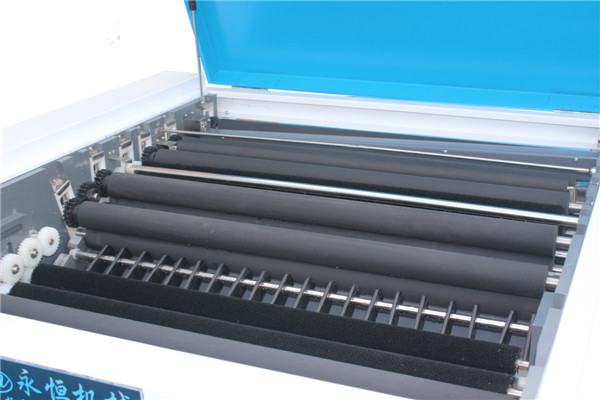

全電腦控制的熱敏CTP版沖版機,自動完成顯影、水洗、上膠、烘干等程序一次完成。超長顯影過程和精確的溫度控制，確保網點真實均勻再現。按照歐洲EC標準設計的，提供了所有的安全防護裝置。工作寬度分別為85、120、130.140.厘米，可處理的版厚度從0.15到0.50毫米。在兩個可變速旋轉毛刷的協助下，通過浸沒方式顯影。顯影槽由密封蓋保護，密封蓋位于和顯影液接觸的位置，從而避免了空氣的氧化。通過版引導滑道形成顯影液循環，保證顯影液溫度的一致而不造成液體波動。版引導滑道上的毛刷壓力可以很容易調節。在版通道上的5對引導輥，進版速度可以調節，以保證速度為70厘米/分鐘、30秒的浸沒時間同時浸沒深度為37厘米。和傳統機器一樣，CTP顯影機也配備有環保系統：在顯影工位的出口有兩個輥積壓版，從而防止顯影液外濺帶來的污染。在清洗工位有一個旋轉毛刷，保證版的良好清洗效果。

保護膠裝在單獨的罐中，電腦調節送到位于版通道上噴嘴的保護膠數量。此系統避免了結塊現象，以及由此帶來的發臭可能，自動清洗上膠輥。

》性能特點：

?超長顯影過程加兩只特殊毛刷，顯影效果均勻、穩定、充分、徹底。特別適合感光快速的熱敏版材。

?精密顯影液恒溫系統，有效控制顯影液溫度，誤差低于±0.5℃。

?顯影液循環系統，有效清除殘渣，確保版面清潔。

?全電腦控制所有參數及程序，精確可靠，版到噴水，版離停水。上膠膠輥自動清洗，防止膠水凝固，待機慢轉，以防膠輥干固。

?顯影速度、毛刷轉速、溫度等參數數字化顯示。

》規格型號及參數（特殊規格可定做）

Model and technical specification (Special specifications can be customized):

（見表格）

Product Introduction:

The computer controlled thermo-Sensitive CTP plate punching machine can automatically complete the process of developing, washing, gluing, drying and so on. The ultra long developing process and accurate temperature control ensure the true and uniform reproduction of the dot. According to the European EC standard, all the safety protection devices are provided. The working widths are 85, 120 and 130.140. cm, respectively. The thickness of the treated plates ranges from 0.15 to 0.50 millimeters. With the aid of two variable speed rotating brushes, the immersion method is developed. The developing tank is protected by a sealing cover, and the sealing cover is positioned at the contact point with the developer so as to avoid the oxidation of the air. The developer guides the slideway to form the developer circulation, so as to ensure the consistency of the developer temperature without causing liquid fluctuation. The brush pressure on the guide slide can be easily adjusted. The 5 pairs of guide rolls on the plate channel can be adjusted to ensure that the speed is 70 cm / min, 30 seconds immersion time, and the immersion depth is 37 cm. Like traditional machines, CTP development machines are equipped with environmental protection systems: there are two roll backlog versions at the exit of the development station to prevent contamination from splash of the developer. There is a rotary brush in the cleaning station to ensure the good cleaning effect of the plate.

The protective adhesive is packed in a separate tank and the computer adjusts the amount of protective glue to the nozzle on the plate channel. This system avoids caking phenomenon and the possible odor, and automatically washes the top roller.

Performance Characteristics :

·Super long developing process with two special brushes, the developing effect is even, stable, full and thorough. It is especially suitable for fast thermal sensitive plates.

·The precision developer temperature control system can effectively control the temperature of developer solution, and the error is less than or equal to 0.5 degrees centigrade.

·The developer circulation system, effectively remove the residue, ensure the layout clean.

·Full computer control all parameters and procedures, accurate and reliable, plate to water, plate without water. The rubber roller is cleaned automatically to prevent the solidification of the glue, and to slow down the standby, so as to prevent the cots from being dry and solid.

·Digital display of development speed, brush speed, temperature and other parameters.

機型 Model	CTP-880型	CTP-1200型
進版尺寸 Plate Size	350mm-880mm	350mm-1200mm
印刷厚度 Plate Thickness	0.15mm-0.4mm	0.15mm-0.4mm
顯影速度 Dev. Speed	20-60s	20-60s
顯影液容量 Developer Capacity	20L	25L
烘干溫度 Drying Temperature	30-60℃	30-60℃
顯影溫度 Dev. Temperature	15℃-40℃	15℃-40℃
電源電壓 Power Supply	單相220V/50Hz 30A	單相220V/50Hz 30A
凈重 Net Weight	380Kg	560Kg
外形尺寸 Outside Dimension	2520×980×1000mm	2520×1180×1000mm
